This design will reduce emission with more than 98.
Internal floating roof tanks ppt.
Instead the cfrt is equipped with a pressure vacuum pv vent and may even include a gas blanketing system such as that used with fixed roof tanks these tanks are designed as in appendix c of the api standard 650.
Internal floating roof tank is a floating roof storage tank which is covered with a fixed roof on the floating roof which can prevent the tank itself from been suffered from wind and rain guarantying the quality of stored oil under the floating roof.
Storage tank internal floating roof 3 2.
Floating roof tanks is which the roof floats directly on top of the product.
There are 2 types of floating roof.
External floating roofis where the roof floats on the product in an open tank and the roof is open to atmosphere.
Specifically it is an environment friendly and economical storage tank or oil tank installed a floating roof under the vault of the tank usually made of aluminum stainless steel or other material to prevent the.
Internal floating roof tank is known as internal floating roof storage tank floating roof oil tank internal floating plate storage tank and internal floating plate oil tank etc.
Internal floating roofis where the roof floats on the product in a fixed roof tank.
Closed floating roof tank this has an internal floating roof but eliminates natural ventilation of the tank vapor space.
Seal types impermeability equipment.
Single wiper seal image 5.
Fixed roof with internal floating roof tank this type of tank is used when the service of an existing fixed roof tank is changed and a floating roof tank should be used for the new service.
Double wiper seal 3 2 a.
An internal floating roof covered floating roof storage see red dome tank is a combination of both the cone roof or dome and the open top floating roof tank.
Tanks with internal floating roofs are used when the stock contained in the tank is sensitive to water contamination such as jet fuel or if other factors such as very heavy snow loads would complicate the design of an external floating roof.
Internal floating roof covered floating roof storage tank.
The tank is prepared for the new service by adding the internal floating roof inside the existing tank.

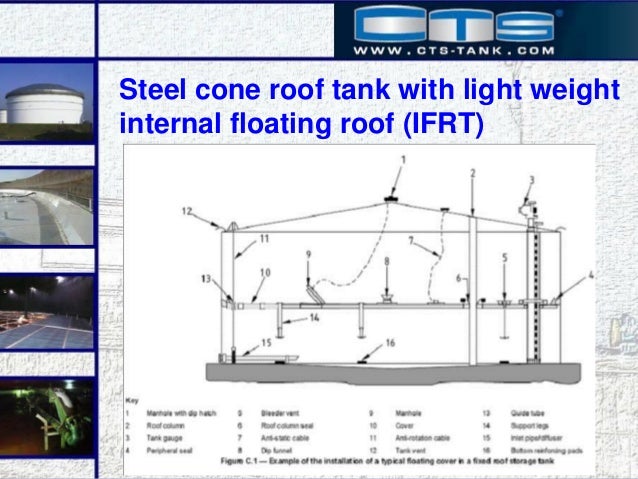

These skin and pontoon ifr are designed as light weight floating structure sealed with a closed skin.
